Industrial Product Electronics

A field-ready electronics and enclosure package built to support a local oil distribution company's monitoring hardware, with Axion aiding in the development of production-grade hardware.

Product electronicsIndustrial hardwareEnclosure integration

Overview

What was built and why it mattered.

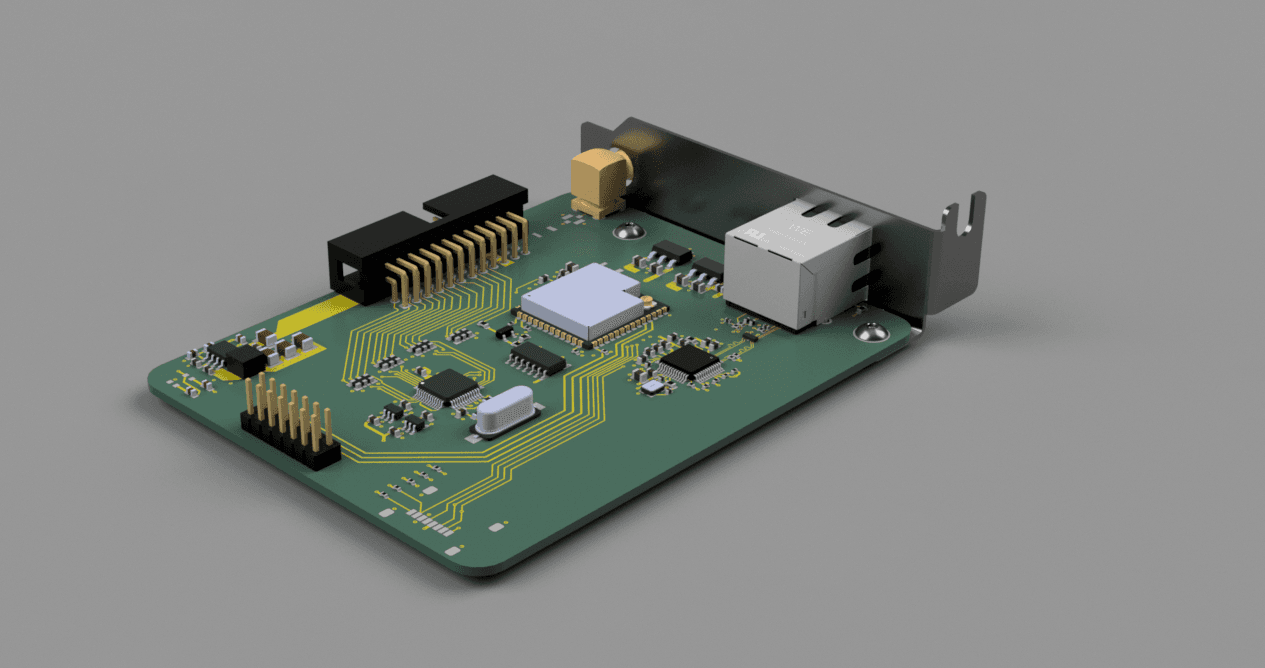

A compact, network-connected electronics platform designed for long-term, unattended operation in an industrial field environment. The system pairs a compute and gateway board with a dedicated wireless radio interface board, giving the product both wired and wireless field connectivity from a single hardware package.

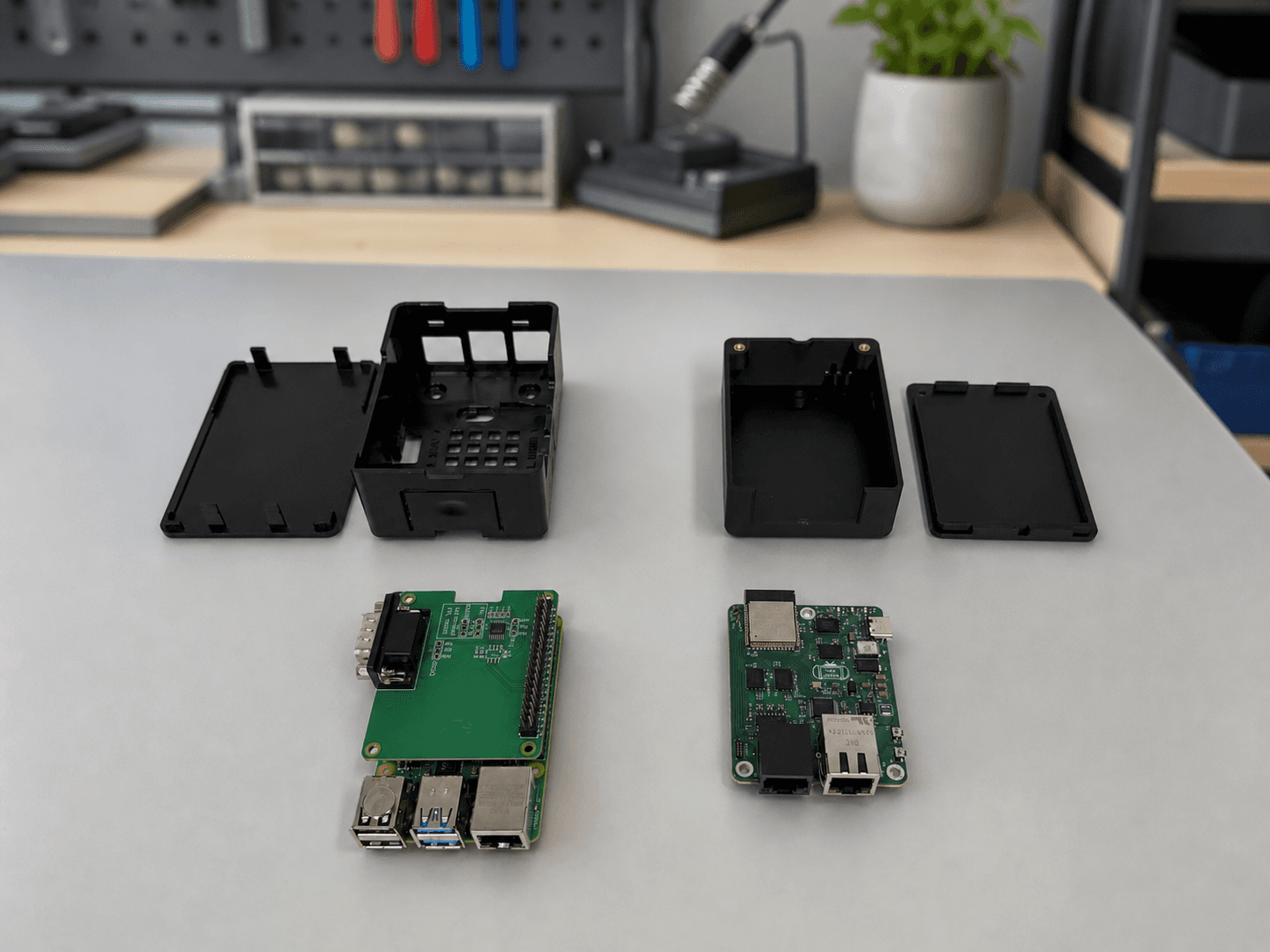

We aided in the development of production-grade hardware for a local oil distribution company, contributing schematic capture and PCB layout, board bring-up and debug, connector and enclosure access planning, and the mechanical integration needed to get finished electronics into a field-ready housing.

Qualifications demonstrated

Technical capability, not just a finished part.

This project exercised the following engineering capabilities directly.

Impedance-controlled PCB routing for reliable high-speed and RF signal integrity

IoT connectivity circuitry spanning wired Ethernet and wireless radio interfaces

SDoC pre-compliance EMC/EMI testing to reduce risk before formal certification

Custom enclosure bracket design and drilling for secure, field-ready electronics mounting

Enclosure CAD design built around connector access, thermal clearance, and serviceability

Contributed to hardware development from schematic capture through enclosure-integrated final assembly

Technical specifications

System details.

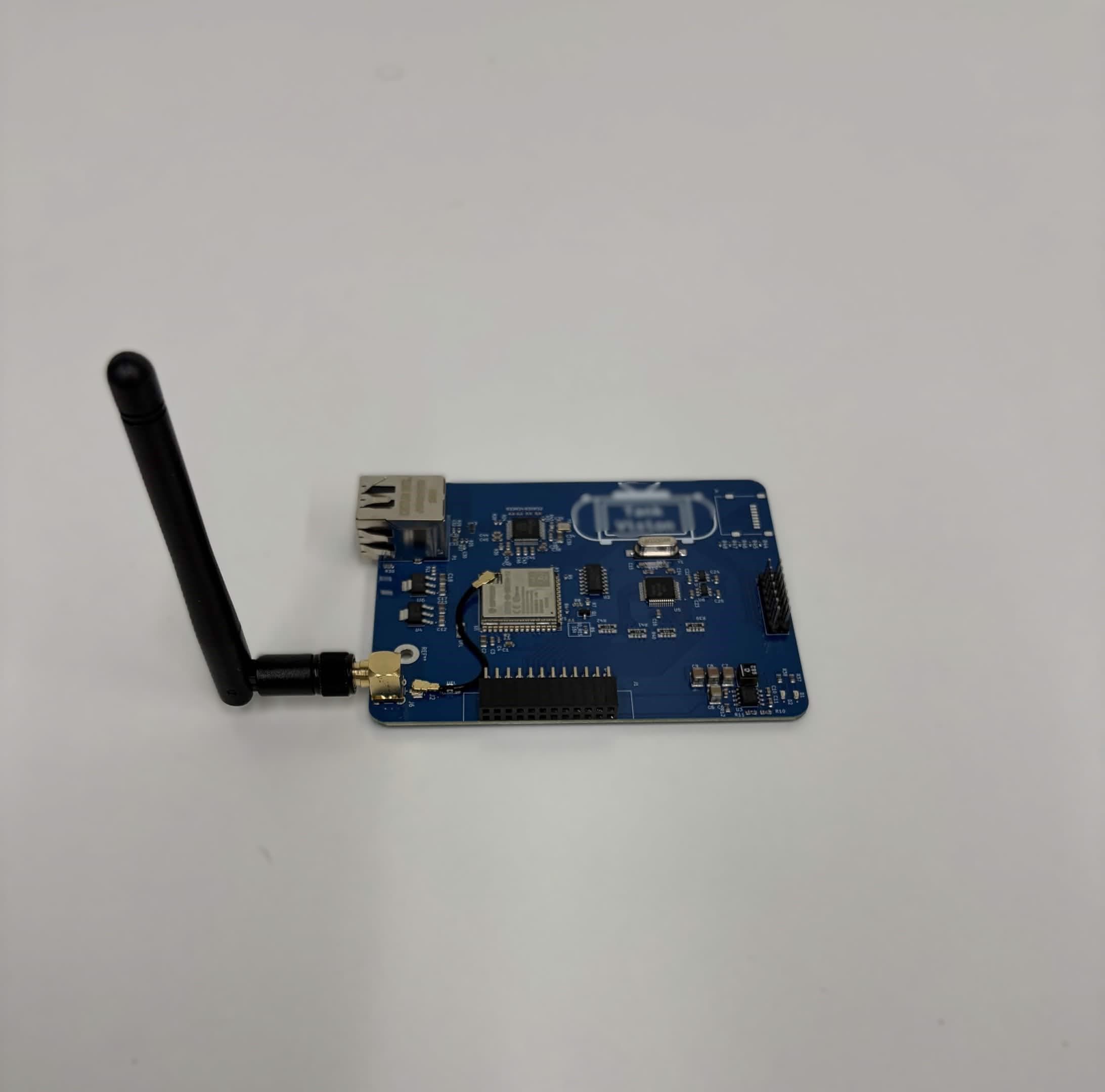

Board configuration: Two-board system: compute/gateway board + wireless radio interface board
Connectivity: Wired Ethernet and wireless radio
Environment: Continuous unattended field deployment
Compliance approach: SDoC pre-compliance EMC/EMI testing
